| 产品特性：保护产品 | 是否进口：否 | 产地：德国 |
| 加工定制：否 | 品牌：DEHN | 型号：DVA CSP 3P 100SFM |
| 标称放电电流：25KA limp | 响应时间：25nss | 最大操作电压：255V |
| 最大放电电流：100kA | 温度范围：-40-85 | 最小包装数：1个 |
| 物料编号：OD2022 | 规格：72*60*90 | Up：1.5KV |

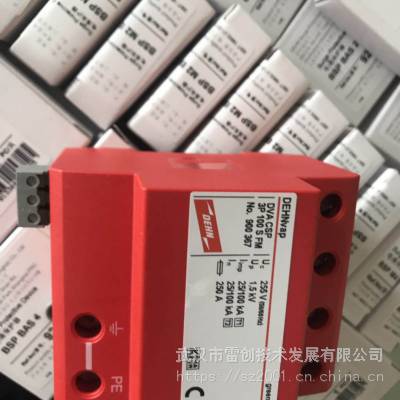

DEHN一防雷器DVACSP3P100SFM新品浪涌保护器100KA
性能；
◆ 适用于不同电网制式，保护更
◆ 35mm导轨安装，标准模块化设计
◆ 具备劣化显示窗口，并可配有远程遥信输出接口；
◆ 外壳采用高阻燃的材料，性能高；
◆ 节能，环保，安装简单，方便，无须特殊维护
Type DVA CSP 3P 100 S FM
Part No. 900 367
SPD according to EN 61643-11 / ... IEC 61643-11 type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 5m) type 1 + type 2 + type 3
Nominal voltage (a.c.) (UN) 230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (UC) 255 V (50 / 60 Hz)
Lightning impulse current (10/350 ?s) [L+N-PE] (Itotal) 100 kA
Lightning impulse current (10/350 ?s) [L-N]/[N-PE] (Iimp) 25 / 100 kA
Nominal discharge current (8/20 ?s) (In) 25 / 100 kA
Voltage protection level [L-N]/[N-PE] (UP) ≤ 1.5 kV / ≤ 1.5 kV kV
Follow current extinguishing capability [L-N]/[N-PE] (Ifi) 25 kArms / 100 Arms
Follow current limitation/Selectivity no tripping of a 35 A gL/gG fuse up to 25 kArms (prosp.)
Response time (tA) ≤ 100 ns
Max. backup fuse (L) up to IK > 25 kArms 250 A gG
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic 440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic 1200 V / 200 ms – withstand
Operating temperature range [parallel]/[series] (TU) -40°C...+80°C
Operating state/fault indication green / red
